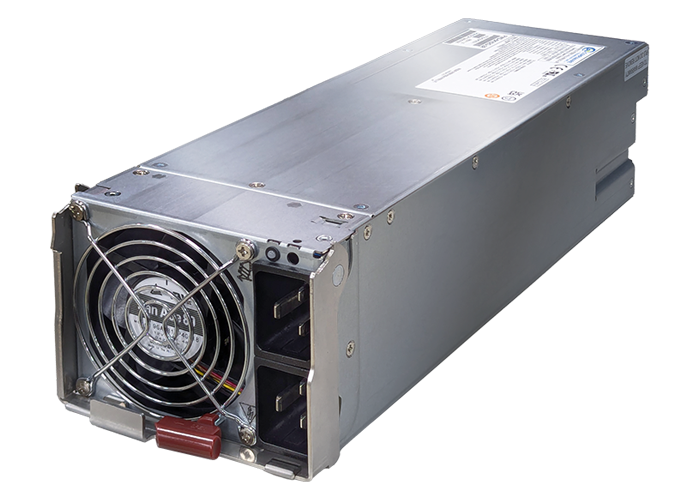

CPR-6622-2M1

首頁產品 CPR-6622-2M1
CPR-6622-2M1

6600W

AC-DC

Redundant

Type

  • AC-DC

Dimensions

  • 335.2 x 109.2 x 82.0 mm (D x W x H)

Max Power

  • 6600W

80 PLUS

  • 80 plus Titanium

Key Features

  • Dual Output: 54V + 12V
  • Noise Level: 25dB (whisper quiet)
  • High Efficiency: 96% @ 50% load
  • Hot Swappable
  • In-system Firmware Uploadl
  • Hot Swappable
  • Communication: PMBus, SMBus, and I2C
  • EDPP: 180%(500μs), 150%(50ms), 110%(60ms) - repeat over 10 seconds.
Datasheet

Input

Voltage AC input: 180 - 264Vac
Frequency 47 - 63Hz
Current 15.6A @ 230Vac per inlet

Output

Voltage 54V 12V 12Vsb
Regulation 52.38~55.62V 11.50~12.60V 11.50~12.60V
Max Load 120.3A @ 230-240Vac 130A 4A
Ripple & Noise 500mVp-p 120mVp-p 120mVp-p

Liquid Cooling Parameters

Liquid Inlet Temperature 12-45°C
Outlet Inlet Temperature 63°C (Max)
Volume Flow Rate 0.4~1.75 LPM
Flow Pressure 0.725 psi ~2.90 psi
Dissipate Heat Capacity 750W

General

Hold-up time 11 msec @ 75% Load (54V and 12V)
MTBF >400,000 hours @ 100% Load, 30°C Ambient

Environmental

Temperature Operating: 0°C to 55°C
Non-operating : -40 to 70°C / Ambient
Altitude Operating: to 5,000 meters
Non-operating: to 10,580 meters
Relative humidity Operating: 20% to 90%RH, Non-condensing
Storage: 5% to 95% RH, Non-condensing
